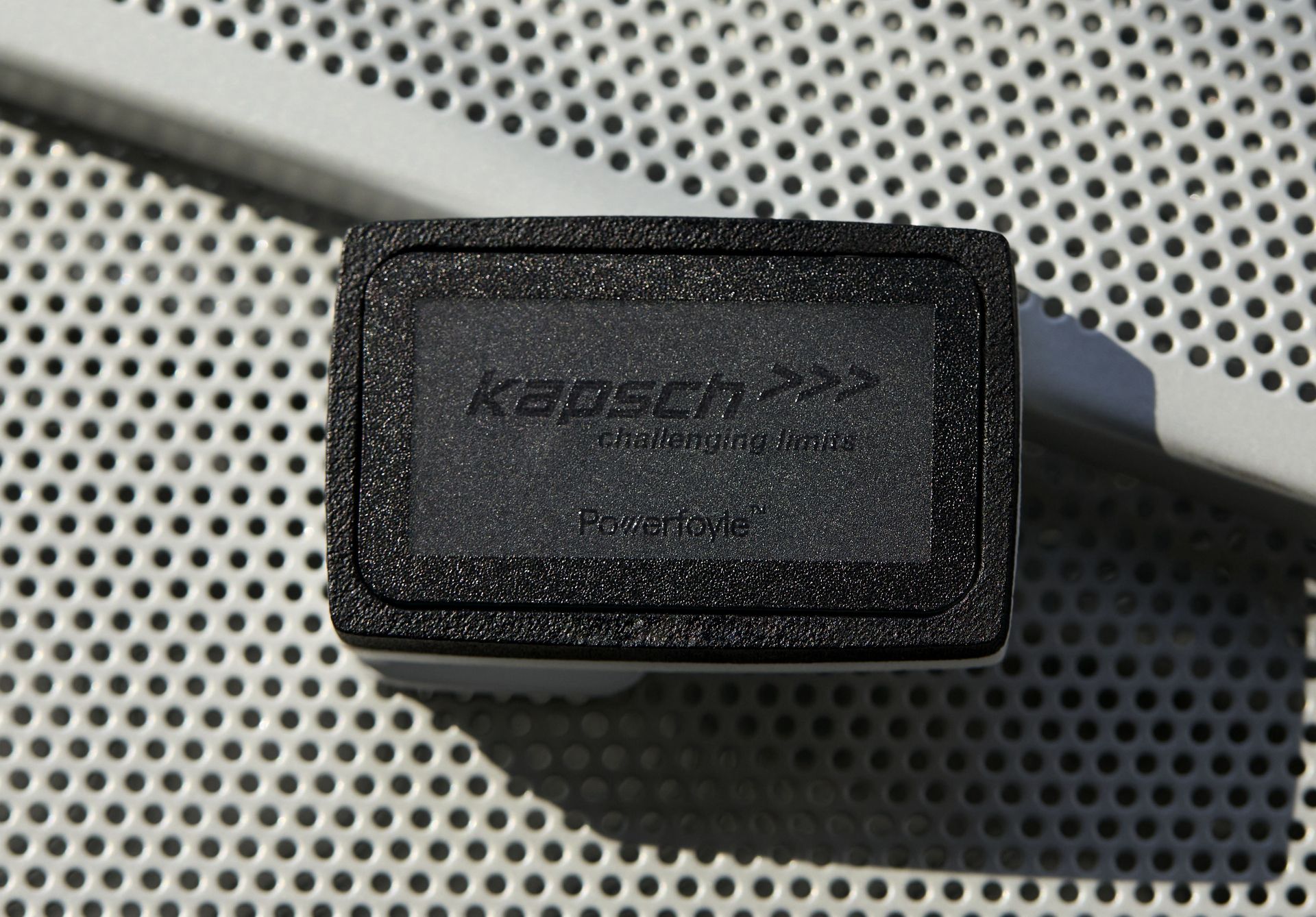

The TRP 4010-40E is an ambient light-powered transponder for worldwide implementations of EFC and ITS services according to the European CEN standards.

The transponder is fully compliant with harmonized Electronic Fee Collection (EFC) specifications and standards such as A1, CESARE/PISTA, CARDME, and EN 15509. It also supports other application types such as AVI, parking, and access. The multi-application architecture provides separate security domains for the applications, ensuring that different entities have access to distinct parts of the user memory and the necessary protections for their respective data.

TRP 4010-40E fulfills requirements for demanding applications such as high-speed multi-lane free-flow scenarios as well as slow congested traffic in stop-and-go situations. The operational lifetime of the transponder is not limited by battery capacity thanks to the sustainable power supply technology through ambient light. The rechargeable battery supports 10,000 charging cycles, providing over 10 years of power supply capability under normal usage conditions. Data security and integrity are secured by a high degree of integration in combination with efficient built-in cryptographic functions based on the DES and triple-DES algorithms. The transponder also supports Advanced Encryption Standards (AES) during personalization. Furthermore, it provides feedback to the driver through configurable buzzer sounds that are activated from the roadside system.

The user can easily install the unit on the inside of the windscreen within a couple of seconds by following the installation instructions available in the user manual. The unit can be removed from the mounting bracket and, if allowed by the issuer, it can be used in more than one vehicle. The TRP 4010-40E contains an in-bracket detection functionality that notices when the unit is removed from its bracket. This feature can also be configured to allow DSRC communication only when the unit is mounted in the bracket. The compact design, combined with optimized manufacturing and delivery processes and an extended life cycle, enables a smaller carbon footprint than other similar products on the market.

If you are interested in the product or request more information please get in touch with us via the contact form.
